EC1_GB_black

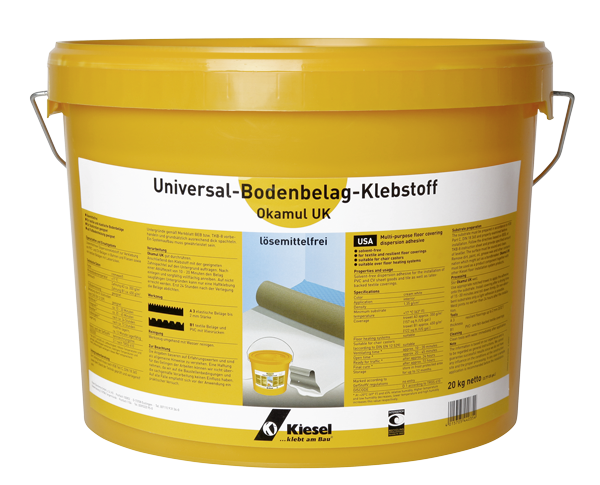

Solvent-free, very low emission dispersion adhesive for bonding PVC and CV floor coverings such as sheets and tiles, as well as tension free textile flooring with latex or fleece backing. Okamul UK eliminates odours through its anti-microbial properties.

The substrate must be inspected and ready for installation in accordance with the respective regulations of the individual countries as well as the current state of technology.

The surface must be sound and clean. Remove dirt, paint, oil, grease wax and other contamination which might act as a bondbraker. Okamul UK must be used as a product component together with other Kiesel floor installation system products.

Depending on the type of substrate, floor coverings and the requirements such as subsequent loading conditions, prepare substrate for laying using suitable Kiesel primers and leveling compounds. When installing vapor-tight coverings and/over non-absorbent substrates use sufficient amount of self-leveling compound to provide adhesive with proper hydration. Technical datasheets of other Kiesel products used, must also be complied with. A system structure must be ensured.

Stir Okamul UK well.
Use appropriate notched trowel to apply the adhesive onto the substrate. Install covering after a drying time of 15-30 minutes and roll down firmly. On non-absorbent substrates only a light adhesion is possible.
Weld joints not earlier than 24 hours after the installation. Follow installation instructions of the covering manufacturer.

Color

cream white

Application

interior

Density

1,35 g/cm2

Minimum floor temperature

+17°C (63° F)

Floor heating system

suitable

Suitable for chair castors (DIN EN 12529)

suitable

Skin over time* / Tack time

approx. 10 - 20 minutes

Open time (working)

approx. 30 - 40 minutes

Walkable*

after approx. 24 hours

Final strength*

after approx. 72 hours

Storage

store in frost protected area for up to 12 months

Marked according GefStoffV

no entry

GISCODE

D 1 according to TRGS 610

*

* At 68 °F (+20 °C) and 65% relative humidity.

Higher temperature and low humidity decreases, lower temperature and high humidity increases this value respectively.

notch trowelcoveringcoverage
TBK A2 / TKB A3PVC-/CV-covering

consumption*: approx. 0,0614 - 0,0717 lbs/ft2 (300 - 350 g/m²)

coverage* per 6,6 lbs plastic bucket: approx. 108 - 92 ft2

coverage* per 13,2 lbs plastic bucket: approx. 215 - 185 ft2

coverage* per 26,5 lbs plastic bucket: approx. 431 - 369 ft2

coverage* per 2,2 lbs plastic box: approx. 36 - 31 ft2

coverage* per 44 lbs plastic bucket: approx. 718 - 615 ft2

TKB B1

tension free

latex- and felt-backed
textile coverings

consumption*: approx. 0,0614 - 0,0717 lbs/ft2 (400 g/m²)

coverage* per 6,6 lbs plastic bucket: approx. 81 ft2

coverage* per 13,2 lbs plastic bucket: approx. 161 ft2

coverage* per 26,5 lbs plastic bucket: approx. 323 ft2

coverage* per 2,2 lbs plastic box: approx. 27 ft2

coverage* 44 per lbs plastic bucket: approx. 538 ft2



*Coverage is approximate and is given for estimating purposes only. It may vary according to substrate
conditions and other factors.

Clean tools with water immediately after application.

Product description Item no. Item no.
96 x 6,6 lbs (3 kg) Plastic bucket440224015705440224
60 x 13,2 lbs (6 kg) Plastic bucket440234015705440231
33 x 26,5 lbs (12 kg) Plastic bucket440244015705440248
96 cartons per 12 x 2,2 lbs (1 kg) Plastic boxes440344015705440347
32 x 44 lbs (20 kg) Plastic bucket440354015705440354

The aforementioned information, especially the proposals for processing and utilizing our product, is based on our knowledge and experience. We recommend that you carry out your own tests in every case to ensure the suitability of our products for the intended process and processing purposes because of the different materials and the working conditions which lie beyond our area of influence. No liability can be derived from this advice or from verbal advice, unless we are responsible for (criminal) intent or gross negligence in this respect.


Revised: 16.02.2023/ag
