Datasheet

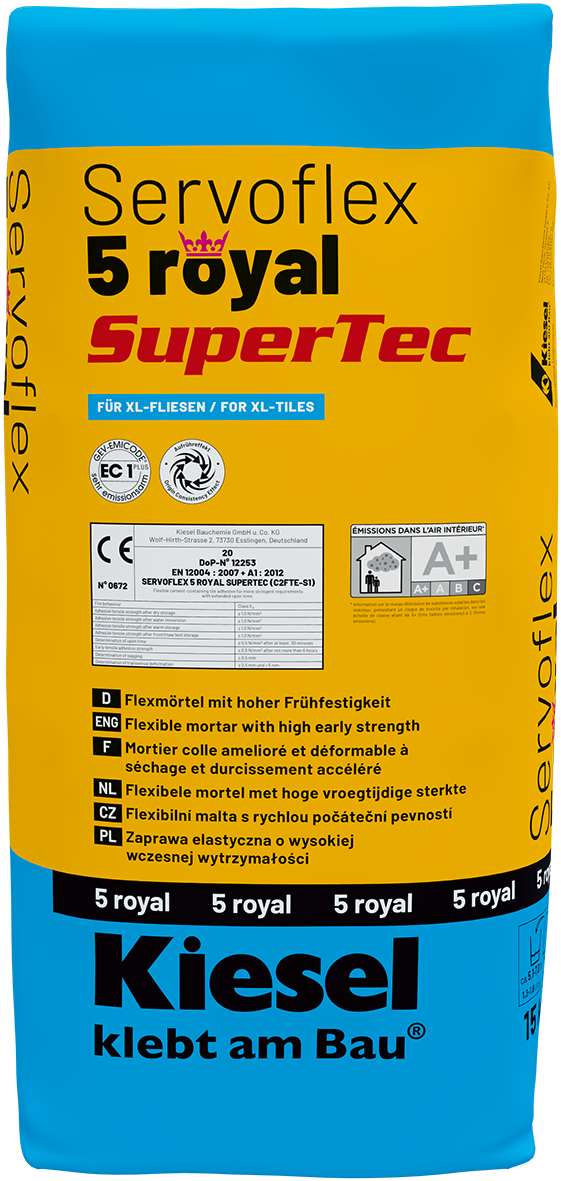

Servoflex 5 royal
Thinset, medium bed and leveling/repair mortar with an accelerated hardness development
- individually adjustable mortar consistence, makes largely complete embedding of the coating material possible
- very high spreading rate
- for indoor, outdoor and underwater areas on wall and especially floor surfaces
- no efflorescence
- safe to process at lower temperatures
- also on hot screeds, balconies, terraces and façades
- long processing time, long working
- no sealing primer required on calcium sulphate screeds for large ceramic and stone tiles
- with Origin Consistency Effect
Plastic finishers, very productive, calcium aluminate cement bonded and dust-reduced thin bed / medium bed (fluid bed) and leveling mortar with high early strength and secure curing, even at low temperatures. For thickness of the application up to 20 mm indoors, outdoors and underwater.
In accordance with DIN EN 12004 C2 FTE-S1.
Servoflex 5 royal is particularly suitable for laying large-format coverings, fine stoneware and corresponding natural stone coverings on conditionally shapable substrates such as heated screed, cement-based screed and calcium sulphate, mastic asphalt screeds, existing concrete (at least 3 months old) and others. By increasing the added water to approx. 7 l/15 kg, a very pliable Mortar consistency is created, which facilitates a special bedding effect that allows largely cavity-free laying when using the floating process.
As a result, the use of the buttering floating process can be omitted. This applies to indoors. When laying particularly large-format surface material, the combined process (buttering floating) may become necessary for optimum bedding of the surface material. As a result of the special binders, no efflorescence is possible when using Servoflex 5 royal e.g. outdoors. In addition, there is also increased resistance against acids and temperature tolerance compared to Portland cement-bonded products.
Servoflex 5 royal is classified according to GEV EMICODE EC1Plus.
Fulfils the guidelines for flex mortar.
The subfloor must be dry, clean and stable. If laying on insecure underfloor the area size must be limited by expansion joints. Clean old coverings with an alkali cleaner. Pre-coat indoor absorbent substrates with Okatmos® DSG, Okatmos® GG, Okamul SP or Okatmos® UG 30. This applies to the max. thickness of 20 mm. On mastic asphalt screeds, the max. thickness is generally 5 mm.
Pre-coat non-absorbent substrates with Okatmos® DSG or Okatmos® UG 30. Outdoors, prime mineral substrates with Okatmos® UG 30 or Okatmos® DSG. Prime Okatmos® UG 30 or Okatmos® DSG on old horizontal coverings and apply the compound seal Servoflex DMS 1K-schnell SuperTec or Servoflex DMS 1K Plus SuperTec.
Mix Servoflex 5 royal with clean water until smooth. Leave to stand for approx. 5 minutes and then mix again. Unevenness in the substrate can be leveled during installation. Larger unevennesses up to 20 mm are leveled by applying a leveling layer, which then has to harden for approx. 4-6 hours or until it can be walked on, before installation is started. Apply Servoflex 5 royal with a notched scraper suitable for the application area, which guarantees a largely fully-coated surface material, to the substrate and insert and push the surface material into the fresh adhesive bed. Depending on the absorbency of the substrate/coating, the laid material can be adjusted within approx. 30 minutes. Servoflex 5 royal, mixed and thickened in a bucket, can be stirred without adding water until hardening begins after 2.5 hours, also multiple times, in order to achieve the start consistency.
Color
silver-grey
Application
inside, outside** and underwater***, on walls and flooring
after approx. 12 hours
Thickness of the application
max. 20 mm
Application temperature
+5 °C to +25 °C (substrate)
Temperature tolerance
-20 °C to +100 °C
Water demand
stable consistence: approx. 5.1 Liter / 15 kg powder
floor consistence: approx. 7.0 Liter / 15 kg powder
Slack time
approx. 5 minutes (then mix once again)
Processing time*
approx. 2.5 hours, depending on mixing water content
Working*
approx. 30 minutes
after approx. 4 - 6 hours
after approx. 4 - 6 hours
ZP 1 - low in chromate, in accordance with TRGS 613
EC1Plus according to GEV
in closed original container approx. 12 months, in dry rooms
*
At +20 °C and 65 % rel. humidity
Higher temperatures lower these values and lower temperatures increase them correspondingly
**
Outdoors and underwater, a largely complete bedding of the surface material is necessary.
The above data, particularly any recommendations for mixing and using our products, is based on our knowledge and experience. Due to different materials and working conditions which are beyond our control, we strongly recommend that you carry out enough tests in each case to ensure the suitability of our products for the intended processes and purposes. We do not assume any liability in regards to this information or verbal recommendations, except in the case of wilful intent or gross negligence on our part. All previous versions of this data sheet are rendered invalid following the publication of this technical data sheet.
Our product range is aimed entirely at the professional craftsman. You will find we have everything for realising your high-quality projects for bonding (and life) on site. It is also worth taking a look at our design products and our highlight topics.
The customer is the focal point of our action. We live service concepts You can find our offers and services here.
| Tooth depth of the notched trowel | Coverage |
|---|---|
| 4 mm (TKB C1) | approx. 0,8 kg/m² |
| 6 mm (TKB C2) | approx. 1,3 kg/m² |
| 8 mm (TKB C4) | approx 1,8 kg/m² |
| 10 mm (TKB C5) | approx. 2,3 kg/m² |
| Medium bed/Buchtal trowel (TKB M1) | approx. 3,0 kg/m² |
| per mm thickness | approx. 0,8 kg/m² |
Coverage is approximate and is given for estimating purposes only. It may vary according to substrate conditions and other factors.
Clean tools and tile surface immediately with water.
| Product description | Item no. | Item no. |
|---|---|---|
| 54 x 15 kg paper bags | 13155 | 4015705131559 |
The aforementioned information, especially the proposals for processing and utilizing our product, is based on our knowledge and experience. We recommend that you carry out your own tests in every case to ensure the suitability of our products for the intended process and processing purposes because of the different materials and the working conditions which lie beyond our area of influence. No liability can be derived from this advice or from verbal advice, unless we are responsible for (criminal) intent or gross negligence in this respect.
Revised: 03.09.2024/ag
