Datasheet

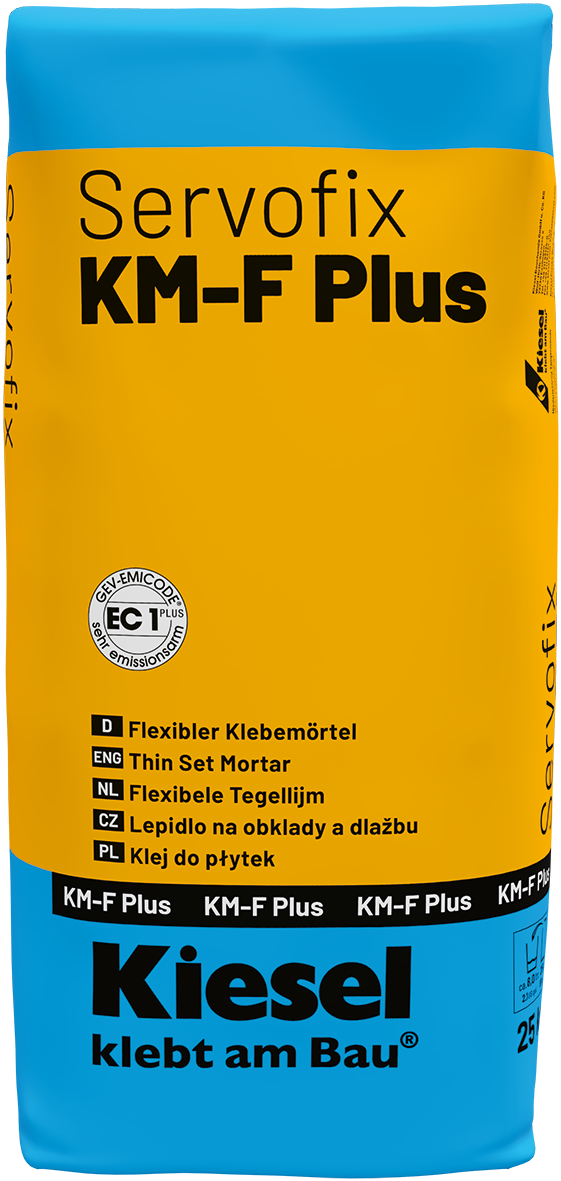

Servofix KM-F Plus
Thin Set Mortar
- thickness (as leveling layer) approx. 5 mm
- interior, exterior**, walls and floors
- flexible
Servofix KM-F Plus is suitable for the following substrates: in-situ concrete (minimum 6 months old), drywall, cement board, heated screed (follow applicable norms and regulations), and gypsum based screeds.
The substrate must be ready for installation, dry, clean and load bearing. If installation occurs on shrinking substrates frequent expansion joints should be included
in the layout. Prime absorbent substrates in interior areas with Okatmos® DSG, Okatmos® GG or Okatmos® UG 30. Prime nonabsorbent substrates with Okatmos® DSG or Okatmos® UG 30. In exterior areas apply a contact layer of adhesive mortar and let it set.
Mix Servofix KM-F Plus with clean, cool water to a smooth texture.
Allow mixture to slake for approx. 5 minutes and stir again. Use appropriate notched trowel (see table) to apply mortar onto substrate, slide the covering material into the adhesive bed within 30 minutes and press tightly. Depending on the absorbency of the substrate/covering corrections can be made within 25 minutes.
Color
grey
Application
interior, exterior**, walls and floors
Thickness
approx. 5 mm
Application temperature
+5°C -+25°C
Temperature tolerance
-20°C - +80°C
Water demand
approx. 8,0 l / 25 kg powder
Pot life*
approx. 2 hours
Open time (working)
approx. 30 minutes
approx. 24 hours
ZP 1 - Low in chrome • Chromaatarm
Storage (month in dry area, unopened packaging), 12 months
*
At +20 °C (68 °F) and 65 % relative humidity. Higher temperature and low humidity decreases, lower temperature and high humidity
increases this value respectivly.
**
Avoid air entrapment doing exterior and underwater installations. Apply mortar on substrate and backside of tiles (buttering-floating).
| Verbrauch (Pulver) | |
|---|---|
| 3 mm (TKB C3) | approx. 1,2 kg/m² |
| 4 mm (TKB C1) | approx. 1,5 kg/m² |
| 6 mm (TKB C2) | approx. 2,3 kg/m² |
| 8 mm (TKB C4) | approx. 2,8 kg/m² |
| 10 mm (TKB C5) | approx. 3,5 kg/m² |
| je mm Schichtdicke | approx. 1,5 kg/m² |
Coverage depends on substrate condition and other factors.
| Product description | Item no. | Item no. |
|---|---|---|
| 42 x 25 kg paper bags | 13009 | 4015705130095 |
The aforementioned information, especially the proposals for processing and utilizing our product, is based on our knowledge and experience. We recommend that you carry out your own tests in every case to ensure the suitability of our products for the intended process and processing purposes because of the different materials and the working conditions which lie beyond our area of influence. No liability can be derived from this advice or from verbal advice, unless we are responsible for (criminal) intent or gross negligence in this respect.
Revised: 03.09.2024/ag
